K-Type Reactor
Standard configuration
The most common configuration for general chemical processing. Available in a wide range of capacities with jacket or coil heating options.
Products/Glass-Lined Reactors
Glass-lined steel reactors, engineered for every duty.
GlassRX manufactures glass-lined reactors from 10 L pilot units to 180,000 L production vessels. Choose K-Type for general processing, half-pipe coil for high-pressure heat transfer, or electrically heated for precise temperature control without steam infrastructure.
01 — Reactor configurations
Configurations engineered for your duty.
Half-Pipe Coil Jacket
High-pressure duty
Half-pipe coil jacket for high-pressure heating/cooling. Improved heat transfer efficiency and structural performance under thermal cycling.
Electric Heating Type
R&D and pilot plants
Electrically heated for processes that require precise temperature control without steam infrastructure. Ideal for R&D and pilot scale.
QA2-AE Series
Two-piece, 10L – 3,000 GAL
Capacity10 L – 3,000 GAL
Clamped top (two-piece) design with removable head for cleanability. Supports anchor, helix, full-zones, and other impeller styles.

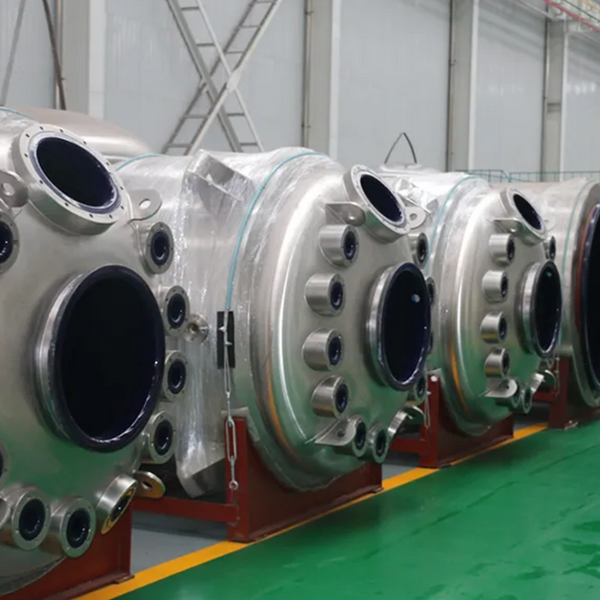

QA1-BE Series
Single-piece, cGMP
Capacity300 – 10,000 GAL
Ideal for cGMP and higher-pressure applications. No large agitator port enables straightforward SIP/CIP cleaning.
QA1-CE Series
Single-piece w/ agitator port
Capacity300 – 10,000 GAL
One-piece reactor with agitator port that accepts a single-piece impeller/shaft assembly. Wide chemical application range.
02 — Specifications
Built to international standards.
- Capacity
- 10 L – 180,000 L
- Heating
- Jacket · Half-Pipe · Electric
- Lining
- Pore-free borosilicate glass
- Standards
- ASME · PED · RTN
- Spark Test
- High-voltage, 100%
- Replaces
- Pfaudler® · De Dietrich® · Thaletec®
03 — Applications
Where this equipment runs.
- —Pharmaceutical API synthesis and cGMP batch processing
- —Fine and specialty chemical manufacturing
- —Agrochemical intermediates and active ingredients
- —Polymerization, hydrogenation, and halogenation
- —Pilot-scale R&D and process development
